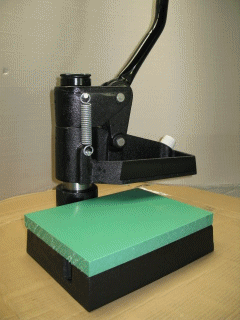

8360 Manual Clicker Die Cutting Press with Swing Arm

Click here for DEMO video

$1295.00, plus shipping

Special order this machine by calling (962) 167-65-89. Customer service will be happy to help and provide you with an estimated lead time.

Телефон доверия в России: (962) 167-65-89

Description +

1. Exceptional Value and Low Operating Cost

No Electricity or Hydraulics Required: Because it is a purely mechanical, hand-operated lever system, it requires zero electrical power, zero hydraulic fluid, and zero maintenance of complex pumps or seals. This makes it incredibly cost-effective to run and completely silent in operation.

Fraction of the Price: It delivers professional-grade die-cutting capabilities at a fraction of the cost of industrial hydraulic clicker presses, making high-efficiency cutting accessible to small businesses and custom leather studios.

2. Precision, Adjustability, and Material Savings

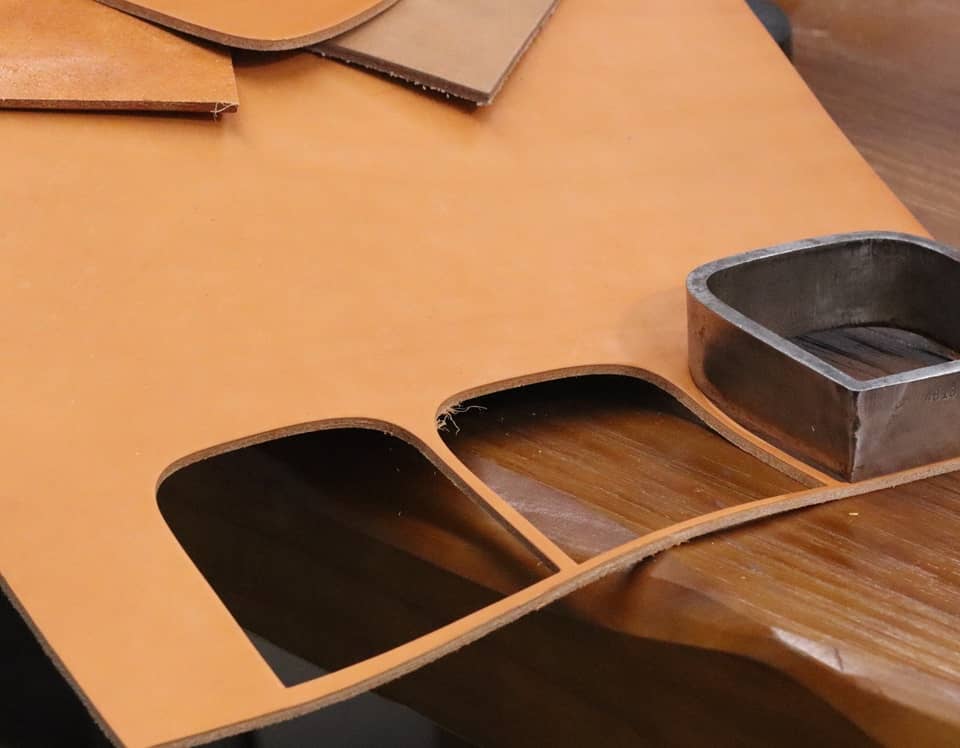

Swing-arm Cutting Head: The open flatbed structure gives you full visibility of the leather hide. Operators can position the die exactly where they want to avoid natural blemishes or scars, maximizing leather yield and drastically reducing material waste.

Fully Adjustable Clearance: The height of the top platen can be quickly adjusted using a heavy-duty threaded steel column. This allows you to accommodate steel-rule dies of various heights (from standard 3/4" dies to tall Japanese-style forged dies) and materials of varying thicknesses.

Perfectly Parallel Compression: The rigid cast-iron and steel frame ensures that the top platen descends completely flat against the cutting board. This prevents "partial cuts" or uneven edges, extending the lifespan of your cutting dies and your polypropylene cutting pads.

3. Massive Mechanical Cutting Power

Incredible Pressure (Up to 5 Tons): Utilizing a heavy-duty, compound leverage cam-action handle, the machine amplifies human force to generate up to 4 to 5 tons of downward pressure. This allows operators to easily cut through thick bridle leather, heavy saddle leather, kydex, rubber, and multi-layered fabrics with a simple pull of the lever.

Effortless Double-Crank Operation: The ergonomic long handle is designed to reduce physical strain, allowing operators to run high-volume cutting sessions without experiencing shoulder or arm fatigue.

4. Compact Footprint and Portability

Space-Saving Benchtop Design: Unlike giant industrial hydraulic machines that weigh thousands of pounds and require dedicated factory floor space, the Cowboy 8360 fits comfortably on a standard workshop bench.

Ideal for Home Studios & leathher workshops: Its compact size and silent operation make it the perfect addition for home-based entrepreneurs, garage workshops, or retail storefronts where space is limited and loud machinery noise is prohibited.

Specifications +

Cutting pressure:Up to 5 tons
Cutting pad size: 300 x 228mm
Platen:200 x 230mm
Max. cutting thickness:10mm
Swing rotation:360 degree
Handle up:812mm
Packing size:395x345x480mm, G.W: 56/49 KGS

Product Information +

The Cowboy 8360 is a hand-operated clicker press featuring a swing arm, and a 300 x 215 mm cutting surface. The exceptional power, durability, and portability of this industrial-quality machine completely set it apart from all other manual clickers in its class. Equipped with a swing-arm cutting head, the CB-8360 effortlessly performs various types of die cutting using both steel rule dies and clicker dies. Ruggedly engineered with a cam-actuated mechanism, it provides a high mechanical advantage that requires very little physical effort from the operator.The rotating swing arm offers a completely clear view and easy access to the work table (cutting board), making the precise placement of dies on printed products incredibly simple. The 8360 functions just like larger industrial swing-head machinery—there is no need to pull your material out of the press between cuts. Simply swing the head out of the way, reposition your die, and make your next cut.Beyond cutting, the 8360 serves as an excellent embossing machine, capable of stamping maker's marks, geometric tooling patterns, and cheater dies onto various types of leather. Every artisan reaches a point where they need a clicker press but may be held back by the high cost of hydraulic machinery. The CB-8360 delivers industrial-grade performance at an incredibly affordable price.
