Adler 266 type Extra Heavy-Duty Zigzag Sewing Machine

Extra-Heavy-Duty Straight-Stitch and Zigzag Sewing Machine

Adler 266 type Extra Heavy-Duty Zigzag Sewing Machine thumbnail

Extra-Heavy-Duty Straight-Stitch and Zigzag Sewing Machine thumbnail

Heavy-Duty Zigzag Sail Sewing Machine thumbnail

Zigzag rope bar-tacking machine thumbnail

9266 Extra-Heavy-Duty Straight-Stitch and Zigzag Sewing Machine | Adler 266 Equivalent

Video on YouTube

Посмотреть цену в РФ

Телефон доверия в РФ: +7 (962) 167-65-89, (980) 693-54-19

Description +

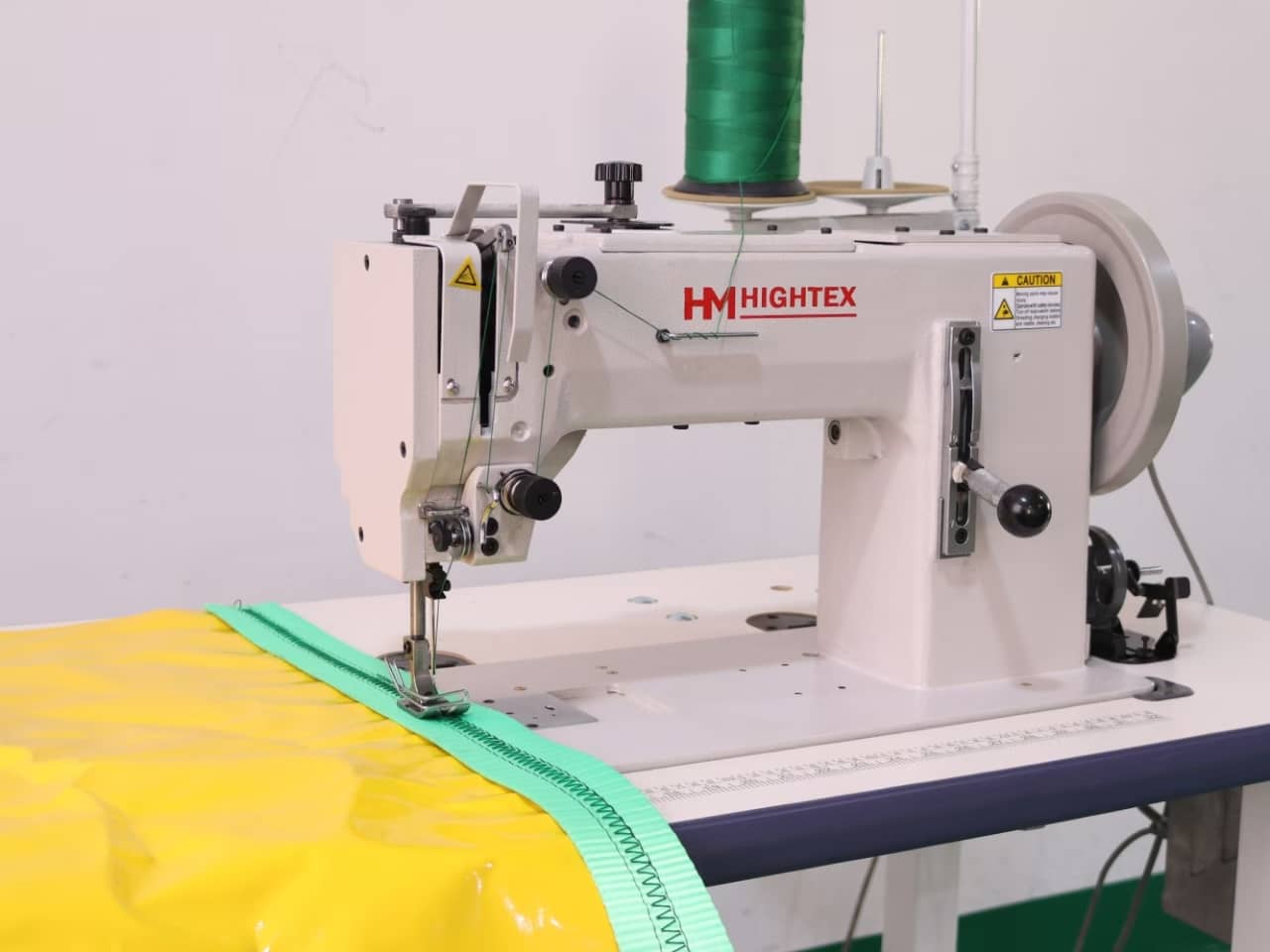

1. It employs a parallel vertical needle bar motion for extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches, this extra heavy duty zigzag sew machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather;

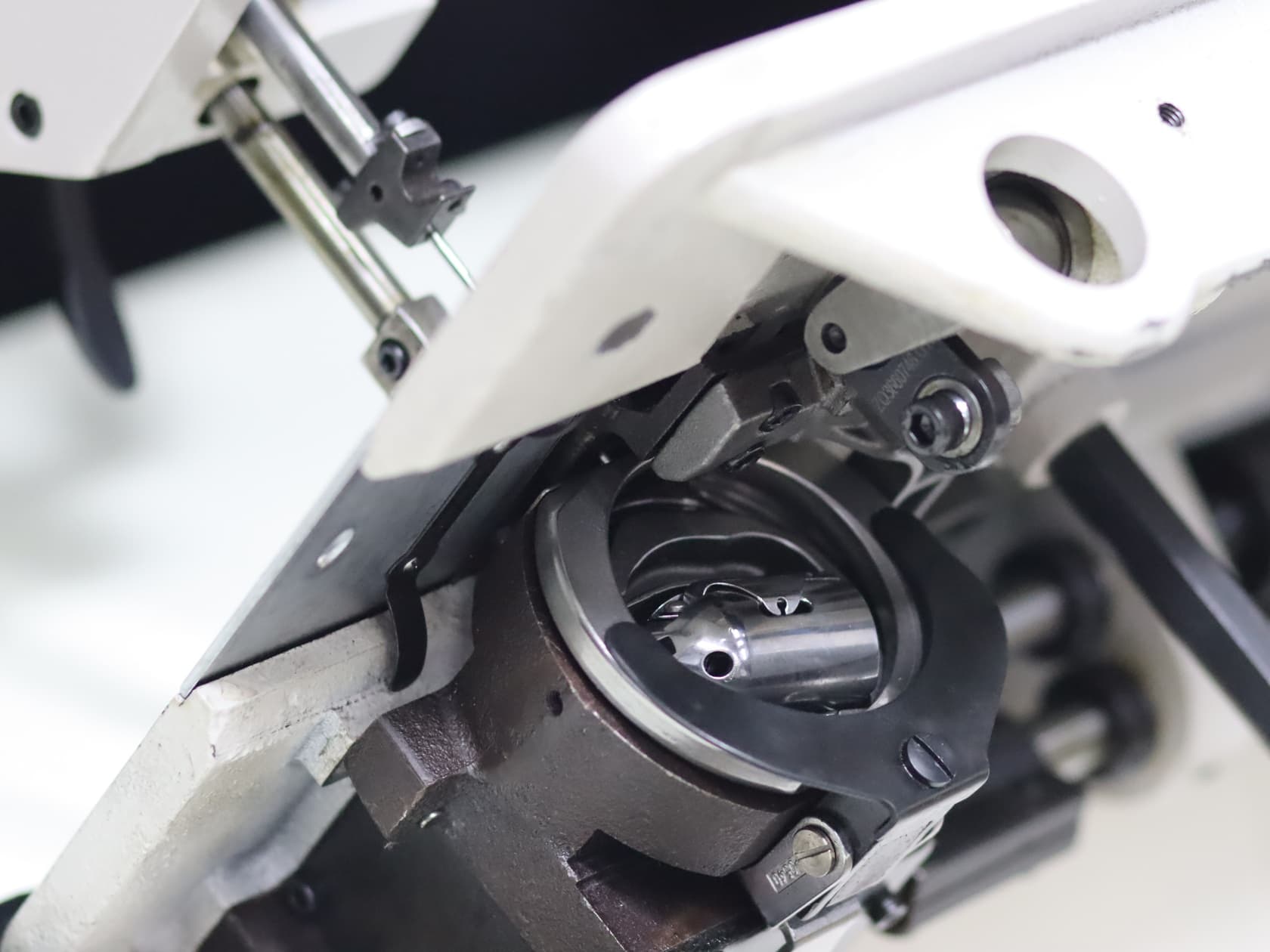

2. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277, as well as thick decorative thread Tex 400 or 1300dx3 or 1.2mm braided thread;
3. A large Zigzag width of up-to 12mm to give nice decorative or functional stitching on a wide range of applications;
4. The basic mechanics (Shuttle hook, adjustments and times) is the same with Adler 166 and Adler 266 heavy duty zigzag, therefore it is easier for the manufacturers who already worked with Adler zig-zag sails sewing machines;

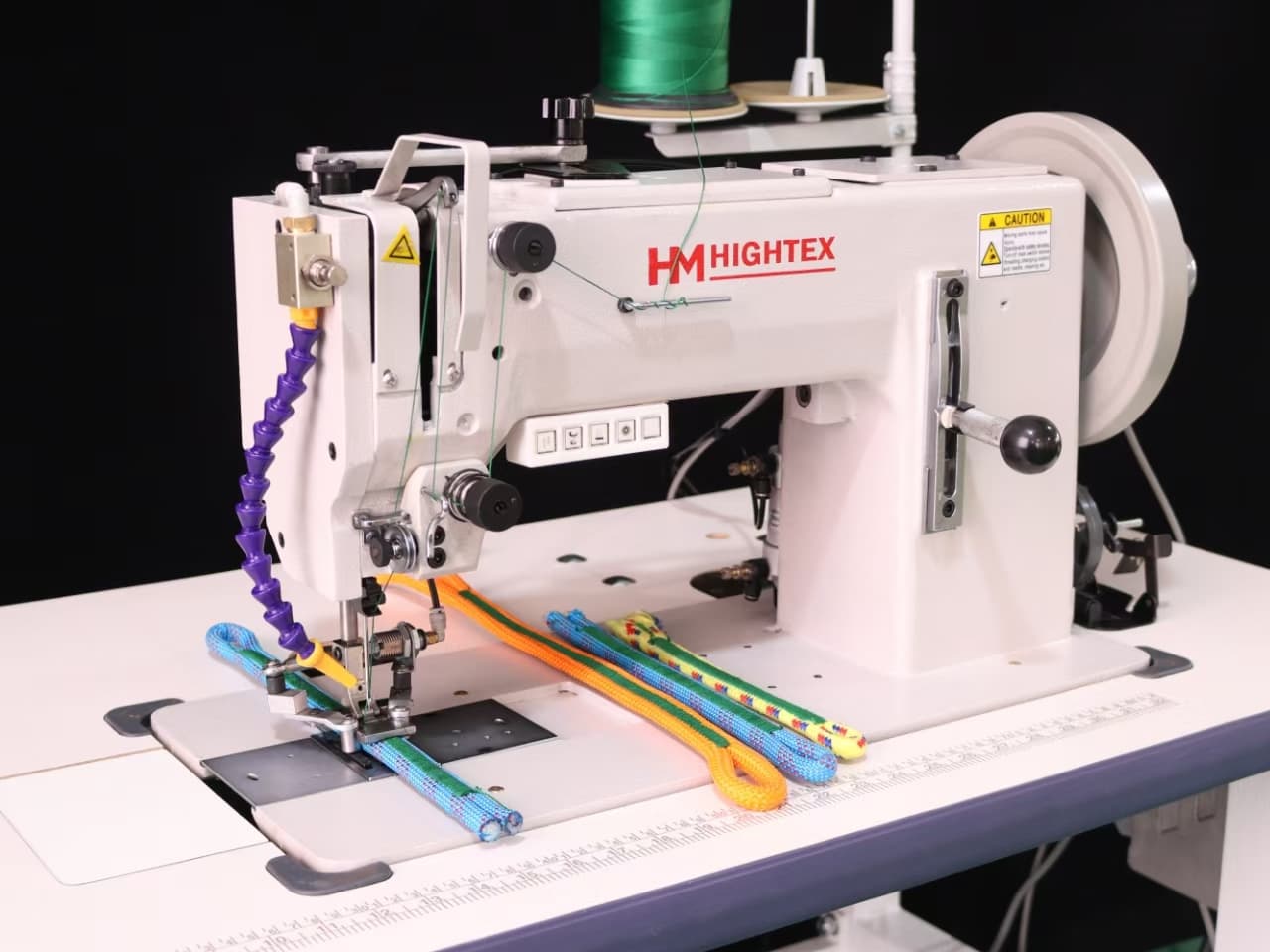

5. With an optional custom presser foot, the 9266 easily switches to a high-density zigzag stitch for rope-end bar tacking. Perfect for manufacturing large dog leashes, climbing ropes, and safety cordage;
6. Equipped with the Kinedyne HM-750SH low-speed electronic servo motor, this system delivers effortless, precise speed control—making heavy-material stitching smoother and more manageable than ever;
7. Pneumatic foot lift, pneumatic reverse stitch, needle cooler and zigzag binding device are available as option.

Specifications +

Max. Speed:800 spm
Max. stitch Length:10mm
Needle:794, DY x 3 (#24)
Max.Thread Sizes:8/3 (=V415, T-400) or 1mm Braided yarn
Maximum Foot Lift: 20mm
ZigZag width:12
Hook type: 204 Large Barrel Shuttle Hook
Clearance room:320mm (L) x 185mm( H)
Packing size(head):770x620x520MM, 85KGS

Product Information +

9266 - это высококлассная копия знаменитого зиг-зага Durkopp Adler 266, был снят с производства в Германии. Машина прекрасно подходит для сшивания тентов, парашютов, парусов, ремней безопасности, строп, ремней, механизмов и грузоподъемных, в средствах индивидуальной защиты от падения с высоты. Так же на машине сшиваются тяжелые технические ткани, применяемые в различных отраслях промышленности, там где требуется качественный прочный шов зиг-заг.
